رمز المنتج: 90MB1IT0-M0EAY0
نوع المنتج: Motherboards

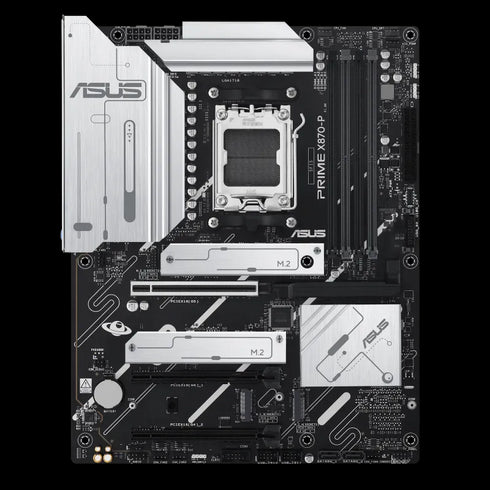

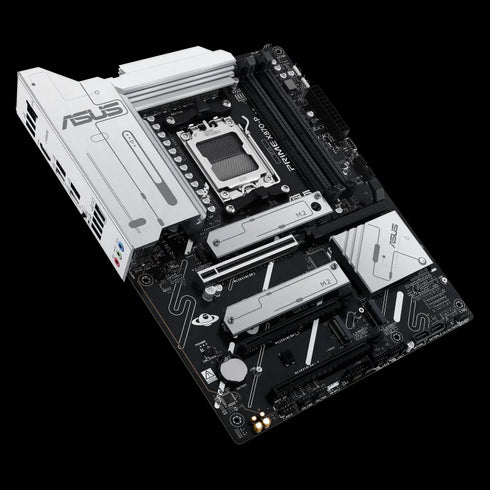

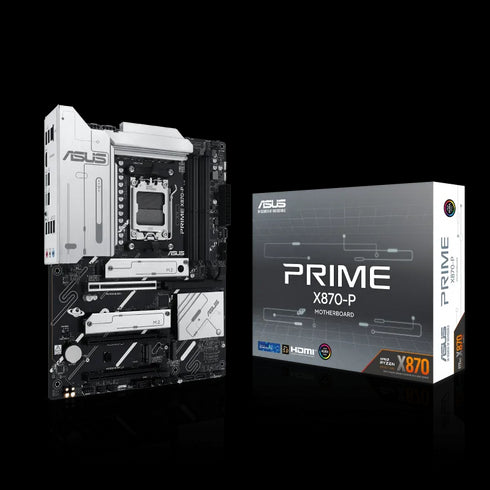

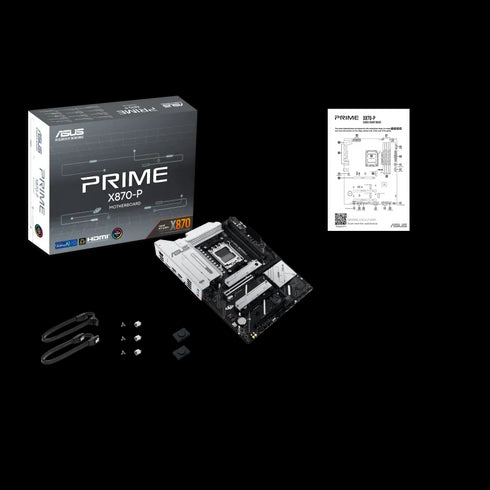

ASUS PRIME X870-P DDR5 (AMD AM5 Motherboard)
AED 1,200.00AED 1,149.00
بسرعة! فقط 100 متوفر الآن!
Shipping within 4 to 5 working days in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى
ASUS PRIME X870-P DDR5 (AMD AM5 Motherboard)
90MB1IT0-M0EAY0
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Technical Specs | |
| CPU Support: |
AMD Socket AM5: – AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset: | AMD X870 |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 – Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors – ECC and Non-ECC, Un-buffered DIMM* – Dual channel memory architecture – Supports AMD Extended Profiles for Overclocking (EXPO™) – ASUS Enhanced Memory Profile (AEMP) |
| Onboard Graphics: | 1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. – Supports 4K@60Hz as specified in HDMI 2.1. – Supports max. 4K@60Hz as specified in DisplayPort 1.4a. – VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Audio: |
Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | N/A (Sold Separately) |
| Bluetooth: | N/A (Sold Separately) |
| Expansion Slots: |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage Interface: |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode) – 2 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: |
Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Internal I/O Connectors: |
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |

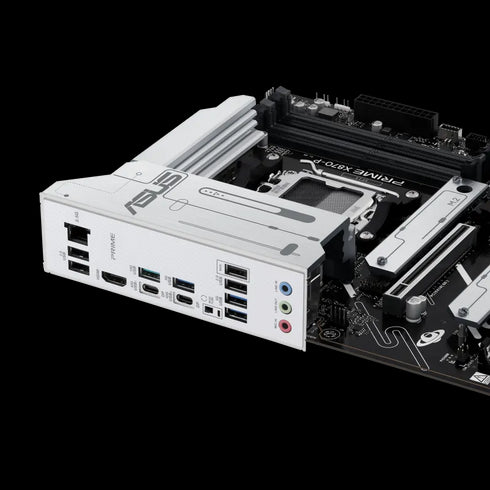

| Back Panel Connectors: | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
